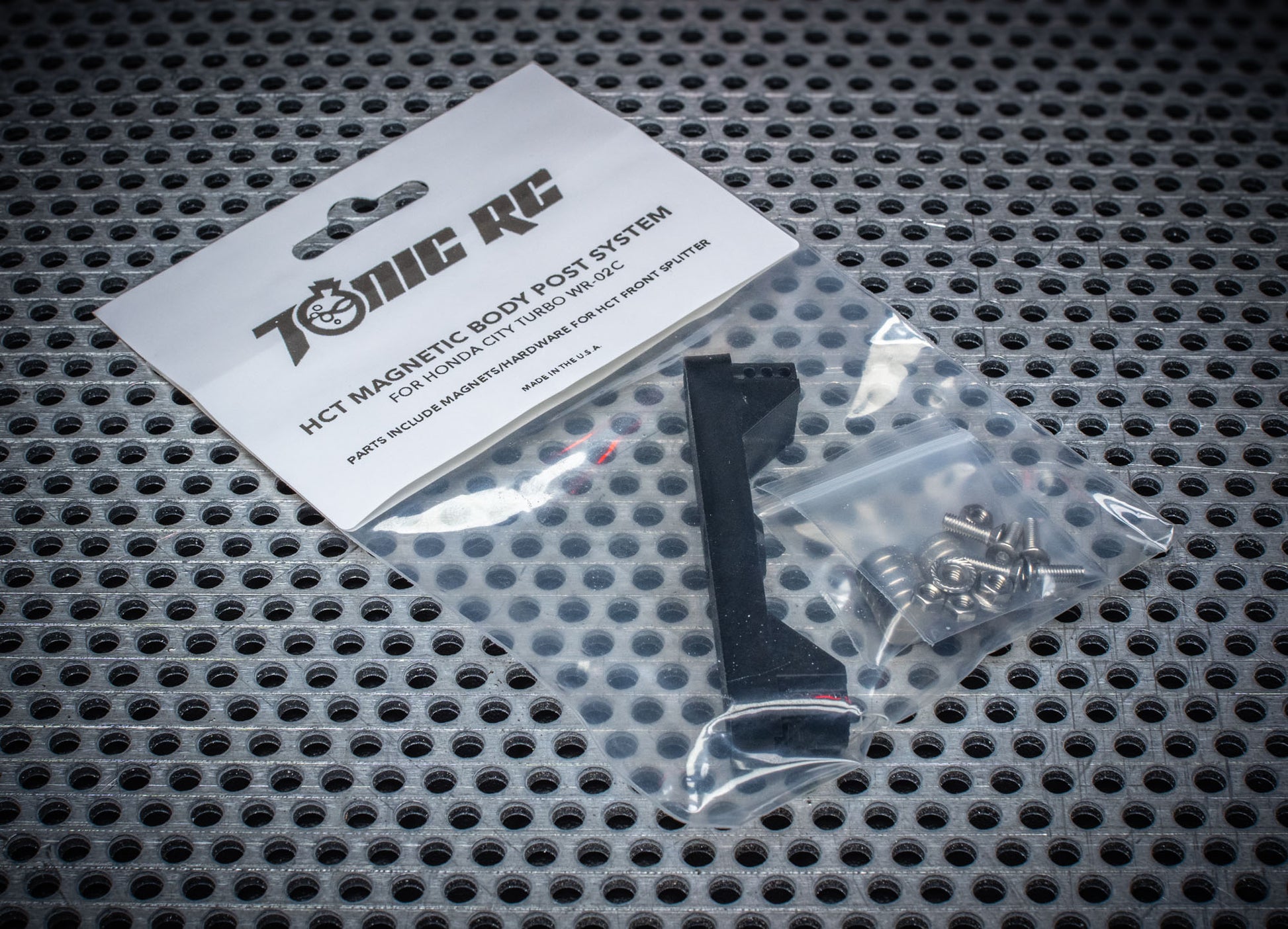

HCT Magnetic Body Post System

These parts allow you to mount your Honda City Turbo body to your chassis with magnets. The magnetic body post system comes with 10 neodymium magnets (5 pairs = 3 pairs rear, 2 pairs front), hex bolts, and nuts. Use the solid magnets on the body and the magnet with holes on the body post mount and front splitter (you will bolt/nut these in place with supplied hardware). Thread lock is advised on non-nylon-locking nuts (I typically like using removable orange thread lock). Heavy amount of E6000 glue can hold the magnets in place on the body shell (be sure to let the glue fully cure before using the body). Use the large stock body pins that came with your Honda City Turbo to lock in the height of the rear body post.

Parts:

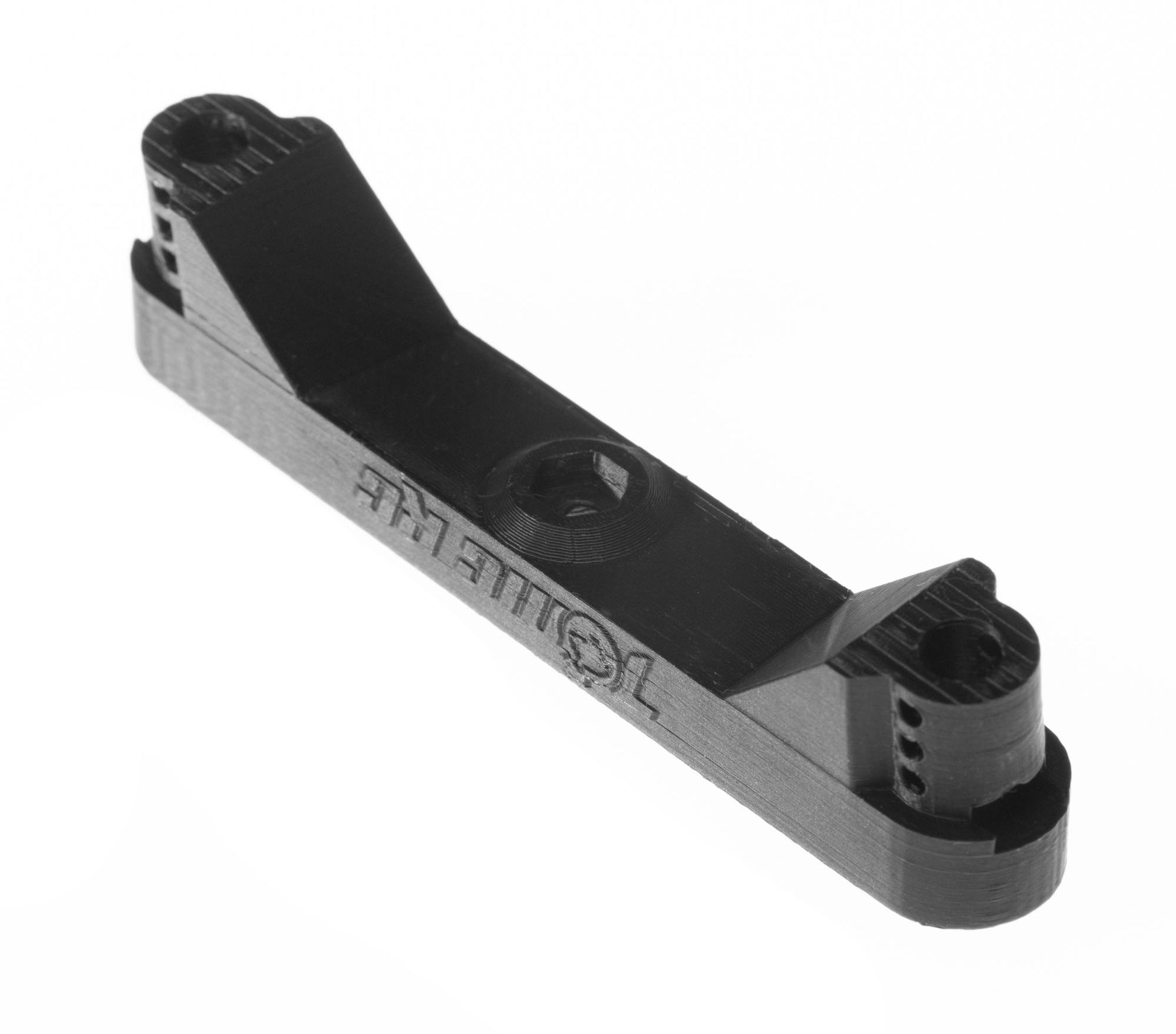

• Rear magnetic body post

• Neodymium magnets with holes (Qty 5)

• Neodymium solid magnets no holes (Qty 5)

• M3 18mm countersunk bolts stainless steel (Qty 2)

• M3 10mm countersunk bolts stainless steel (Qty 3)
• M3 nuts (standard non-locking) for rear magnets (Qty 3)

• M3 flanged nuts (standard non-locking) for front magnets (Qty 2)

This part is also included in the following kits:

HCT Pro Kit

Detailed installation instructions to come later (hurrying to get these parts available first!)

Tips: Some parts may still have some support tree remnants. Using needle nose pliers can pluck those stray strands off the main part. You can also sand down the parts to make them smooth, but be aware that it may lighten or dull the sanded area as compared to the rest of the part if you don't plan on painting them (I didn't paint any of the black parts and kept them bare). If a bolt needs to get through a stubborn hole, a hole reamer or even a simple hex driver may be all that's needed to make the hole larger for the bolt. Some of the large flat surfaces with speckled/rough texture may have residual hot bed adhesion glue residue still on them. If you want to remove that slightly sticky surface, simply clean it with warm water and a micro dot of dish soap (and a soft green Brillo pad can be used to help get the residue off faster).

Full HCT Magnetic Body Post System installation instructions can be found here.
